Cylinder Block - Oil Pan (2.4L) for 2013 Honda Civic

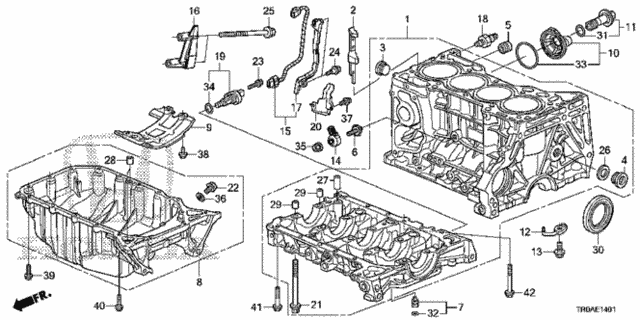

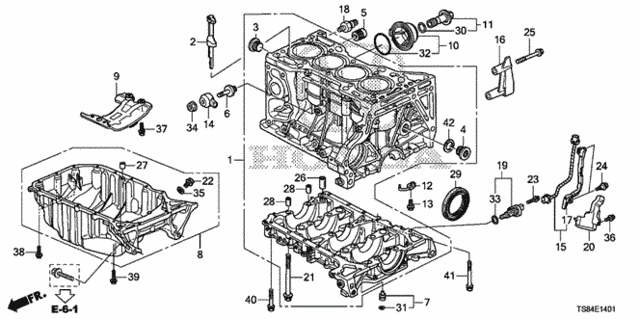

Diagram 1 1. BLOCK ASSY., CYLINDER (DOT) Diagram 2 2. BLOCK ASSY., CYLINDER (DOT)
Cylinder Block - Oil Pan (2.4L) for 2013 Honda Civic #0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
No.
Part # / Description / Price
Price
1
11000R40811 - Engine: BLOCK ASSY., CYLINDER (DOT) for Honda Image
Block Assembly, Cylinder (DOT)
11000-R40-811
Honda Honda
MSRP $2,122.78
$1,559.19
MSRP $2,122.78
$1,559.19
2
11103R40A01 - Engine: PLATE, PARTITION for Honda Image
Plate, Partition
11103-R40-A01
Honda Honda
MSRP $42.74
$29.23
MSRP $42.74
$29.23
3
11106PNA300 - Engine: BOLT, SEALING (20MM) for Honda Image
Bolt, Sealing (20MM)
11106-PNA-300
Honda Honda
MSRP $11.21
$8.75
MSRP $11.21
$8.75
4
11106PR4013 - Engine: BOLT, SEALING (28MM) for Honda Image
Bolt, Sealing (28MM)
11106-PR4-013
Honda Honda
MSRP $17.28
$12.44
MSRP $17.28
$12.44
5
11108PT0003 - Engine: BOLT, SEALING (18MM) for Honda Image
Bolt, Sealing (18MM)
11108-PT0-003
Honda Honda
MSRP $14.20
$10.65
MSRP $14.20
$10.65
6
11109R1AA00 - Engine: BOLT, KNOCK SENSOR for Honda Image
Bolt, Knock Sensor
11109-R1A-A00
Honda Honda
MSRP $11.03
$8.61
MSRP $11.03
$8.61
7
11135RAAA00 - Engine: ORIFICE ASSY., BLOCK (LOWER) for Honda Image
Orifice Assembly, Block (Lower)
11135-RAA-A00
Honda Honda
MSRP $8.77
$6.84
MSRP $8.77
$6.84
8
11200RX0A00 - Engine: PAN ASSY., OIL for Honda Image
Pan Assembly, Oil
11200-RX0-A00
Honda Honda
MSRP $394.43
$269.79
MSRP $394.43
$269.79
9
11221R40A00 - Engine: PLATE A, BAFFLE for Honda Image
Plate A, Baffle
11221-R40-A00
Honda Honda
MSRP $6.39
$5.38
MSRP $6.39
$5.38
10
11500R40A00 - Engine: CAP, OIL GALLERY for Honda Image
Cap, Oil Gallery
11500-R40-A00
Honda Honda
MSRP $133.64
$92.21
MSRP $133.64
$92.21
11
11550RZA000 - Engine: BOLT, GALLERY CAP for Honda Image
Bolt, Gallery Cap
11550-RZA-000
Honda Honda
MSRP $108.71
$74.35
MSRP $108.71
$74.35
12
15280R40A01 - Engine: BODY, OIL JET for Honda Image
Body, Oil Jet
15280-R40-A01
Honda Honda
MSRP $48.71
$33.32
MSRP $48.71
$33.32
13
15290R40A01 - Engine: BOLT, OIL JET for Honda Image
Bolt, Oil Jet
15290-R40-A01
Honda Honda
MSRP $58.25
$39.84
MSRP $58.25
$39.84
14
30530R1AA01 - Engine: SENSOR, KNOCK for Honda Image
Sensor, Knock
30530-R1A-A01
Honda Honda
MSRP $196.70
$134.54
MSRP $196.70
$134.54
15
32113RL5A00 - Engine: SUB-WIRE, CRANK SENSOR for Honda Image
Sub-Wire, Crank Sensor
32113-RL5-A00
Honda Honda
MSRP $65.13
$44.55
MSRP $65.13
$44.55
16
32118RX0A01 - Engine: INSULATOR, CRANK SUB-HARNESS HEAT for Honda Image
Insulator, Crank Sub-Harness Heat
32118-RX0-A01
Honda Honda
MSRP $31.21
$22.48
MSRP $31.21
$22.48
17
32129RL5A00 - Engine: HOLDER, CRANK SUB-WIRE for Honda Image
Holder, Crank Sub-Wire
32129-RL5-A00
Honda Honda
MSRP $21.78
$15.68
MSRP $21.78
$15.68
18
37241RNAA01 - Engine: SWITCH ASSY., OIL PRESSURE (DENSO) for Honda Image
Switch Assembly, Oil Pressure (Denso)
37241-RNA-A01
Honda Honda
MSRP $115.36
$78.90
MSRP $115.36
$78.90
19
37500R40A01 - Engine: SENSOR ASSY., CRANK for Honda Image
Sensor Assembly, Crank
37500-R40-A01
Honda Honda
MSRP $242.42
$165.81
MSRP $242.42
$165.81
20
37503RL5A00 - Engine: COVER, CRANK SENSOR for Honda Image
Cover, Crank Sensor
37503-RL5-A00
Honda Honda
MSRP $25.20
$18.14
MSRP $25.20
$18.14
21
90006PNA003 - Engine: BOLT-WASHER (11X95) for Honda Image
Bolt-Washer (11X95)
90006-PNA-003
Honda Honda
MSRP $8.61
$6.72
MSRP $8.61
$6.72
22
90009R70A00 - Engine: BOLT, PLUG (14MM) for Honda Image
Bolt, Plug (14MM)
90009-R70-A00
Honda Honda
MSRP $20.06
$14.45
MSRP $20.06
$14.45
23
90028PNB003 - Engine: BOLT, SPECIAL (6X20.5) (GUIDE) for Honda Image
Bolt, Special (6X20.5) (Guide)
90028-PNB-003
Honda Honda
MSRP $5.33
$4.48
MSRP $5.33
$4.48
24
90051RGA003 - Engine: BOLT, SPECIAL (6X20.8) for Honda Image
Bolt, Special (6X20.8)
90051-RGA-003
Honda Honda
MSRP $5.71
$4.80
MSRP $5.71
$4.80
25
90164RX0000 - Engine: BOLT, FLANGE (12X100) for Honda Image
Bolt, Flange (12X100)
90164-RX0-000
Honda Honda
MSRP $5.51
$4.62
MSRP $5.51
$4.62
26
90401PR4000 - Engine: WASHER, SEALING (28MM) for Honda Image
Washer, Sealing (28MM)
90401-PR4-000
Honda Honda
MSRP $6.07
$5.10
MSRP $6.07
$5.10
27
90703PE0000 - Engine: PIN, DOWEL (18X22) for Honda Image
Pin, Dowel (18X22)
90703-PE0-000
Honda Honda
MSRP $13.69
$10.26
MSRP $13.69
$10.26
28
90715PC6000 - Engine: PIN, DOWEL (13X20) for Honda Image
Pin, Dowel (13X20)
90715-PC6-000
Honda Honda
MSRP $8.41
$6.57
MSRP $8.41
$6.57
29
90715PNA000 - Engine: PIN, DOWEL (13X14) for Honda Image
Pin, Dowel (13X14)
90715-PNA-000
Honda Honda
MSRP $8.41
$6.57
MSRP $8.41
$6.57
30
91214R11A01 - Engine: OIL SEAL (80X98X10) for Honda Image
Oil Seal (80X98X10)
91214-R11-A01
Honda Honda
MSRP $23.83
$17.16
MSRP $23.83
$17.16
31
91304RZA000 - Engine: O-RING (32X2.4) for Honda Image
O-Ring (32X2.4)
91304-RZA-000
Honda Honda
MSRP $5.67
$4.76
MSRP $5.67
$4.76
32
91306PJ4000 - Engine: O-RING (6.8X1.9) for Honda Image
O-Ring (6.8X1.9)
91306-PJ4-000
Honda Honda
$3.78
$3.78
33
91316PE7730 - Engine: O-RING (62.4X3.1) for Honda Image
O-Ring (62.4X3.1)
91316-PE7-730
Honda Honda
MSRP $7.15
$6.01
MSRP $7.15
$6.01
34
91333PNA003 - Engine: O-RING (15X1.9) for Honda Image
O-Ring (15X1.9)
91333-PNA-003
Honda Honda
$3.45
$3.45
35
9405008080 - Engine: NUT, FLANGE (8MM) for Honda Image
Nut, Flange (8MM)
94050-08080
Honda Honda
$0.98
$0.98
36
9410914000 - Engine: WASHER, DRAIN PLUG (14MM) for Honda Image
Washer, Drain Plug (14MM)
94109-14000
Honda Honda
$0.65
$0.65
37
957010601405 - Engine: BOLT, FLANGE (6X14) for Honda Image
Bolt, Flange (6X14)
95701-06014-05
Honda Honda
$1.90
$1.90
38
957010601808 - Engine: BOLT, FLANGE (6X18) for Honda Image
Bolt, Flange (6X18)
95701-06018-08
Honda Honda
$1.70
$1.70
39
957010603008 - Engine: BOLT, FLANGE (6X30) for Honda Image
Bolt, Flange (6X30)
95701-06030-08
Honda Honda
$2.94
$2.94
40
957010603208 - Engine: BOLT, FLANGE (6X32) for Honda Image
Bolt, Flange (6X32)
95701-06032-08
Honda Honda
$1.97
$1.97
41
957010803508 - Engine: BOLT, FLANGE (8X35) for Honda Image
Bolt, Flange (8X35)
95701-08035-08
Honda Honda
$1.47
$1.47
42
957010805008 - Engine: BOLT, FLANGE (8X50) for Honda Image
Bolt, Flange (8X50)
95701-08050-08
Honda Honda
$2.50
$2.50
